ELECTRIC MILWAUKEE - 4120-22 CORE DRILLING RIGS
$0.00
Product Details

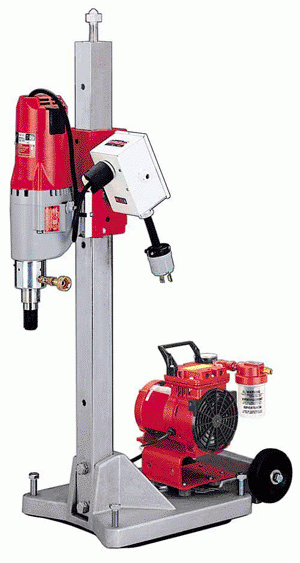

Core drilling rigs
This contractor series large base stand features a cast aluminum base with 4 leveling screws for fast accurate leveling adjustment. The durable precision-ground 2-1/2 in. steel column is 43-1/2 in. high and has a universal motor adapter plate. The reversible feed handle helps the operator use the unit from either side. Model 4120-22 comes with model 4096 coring motor, Vac-U-Rig® kit as well as a meter box. The Vac-U-Rig® assembly uses a vacuum pump to apply suction to a large pad mounted on the bottom of the rig. This aids in stability when coring holes.
SPECIFICATIONS
Make:MILWAUKEE
Model:4120-22
AMPS: 20
CAPACITY: up to 10'' core bit
RPM: 450/900
TYPE: Electric
VOLTAGE: 110
WEIGHT: 115.3 lbs
WHEEL SIZE: 5''
