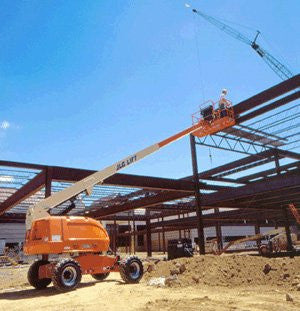

400S Telescopic Boom Lift, 40 ft
Telescopic (straight or stick boom) boom lifts are especially useful for applications that require high reach capability. The machine's turntable can be rotated 360 degrees in either direction for easier positioning. The boom can be raised or lowered from vertical to below horizontal and extended while the work platform remains straight and stable. The operator in the platform can maneuver and steer in any direction, even while the boom is extended.
SPECIFICATIONS
Make:JLG
Model:400s
FUEL: Diesel
FUEL TANK: 26 gal
GRADABILITY: 30%
GROSS VEHICLE WEIGHT: 12,525 lbs
GROUND-CLEARANCE: 12.5 in.
HEIGHT STOWED: 7 ft. 10 in.
HORIZONTAL OUTREACH: 34 ft. 1 in.
LENGTH STOWED: 24 ft. 9 in.
LIFT CAPACITY MAX: 1000 lbs.
LIFT CAPACITY MAX: HEIGHT 500 lbs.
LIFT CAPACITY MAX: REACH 500 lbs.
PLATFORM CAPACITY: 500 lbs.
PLATFORM HEIGHT: 40 FT. 4 IN.
PLATFORM SIZE: 36 X 96 IN.
PLATFORM-WEIGHT-CAP-RESTRICTD 1,000 lbs
PLATFORM-WEIGHT-CAP-UN-RESTRICTD: 500 lbs
WEIGHT: 12,525 lbs
WHEEL BASE: 7 ft. 8 ''
